How to use tabs

This guide shows you how to use the [Tabs][vizro.models.Tabs] model, which organize and separate groups of related content in a dashboard, letting users switch between different sections or views.

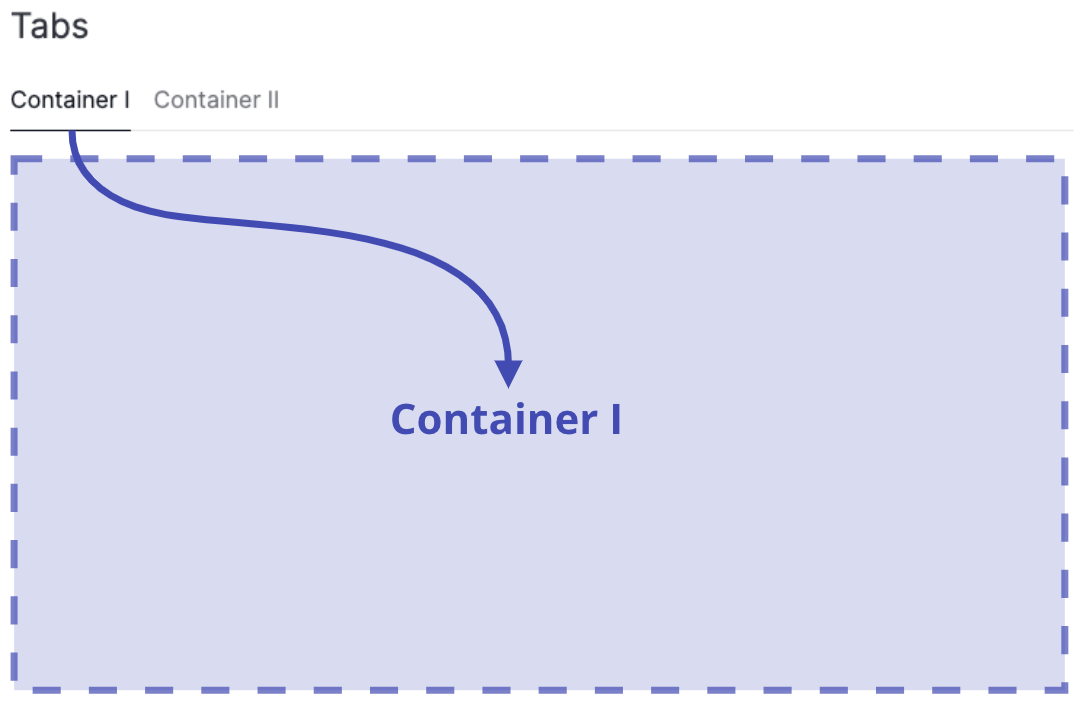

They are essentially a way of putting multiple [Container][vizro.models.Container] models in the same screen space, and letting the user switch between them. A Container enables the grouping of page components into sections and subsections. The [Tabs][vizro.models.Tabs] model is based on the underlying Dash component dbc.Tabs.

Both Tabs and Containers are a more advanced technique for customizing your page layout. If you want to arrange components on a page, we recommend reading our user guide on layouts first.

This guide shows you how to use tabs to organize your Containers into subsections inside the dashboard.

By using the [Tabs][vizro.models.Tabs] model, the following applies:

Filters affect all components on all tabs (opened and closed) of the page if not specified otherwise inside Filter.targets
The title of the [Container][vizro.models.Container] inserted into Tabs.tabs will be displayed as a tab label, and the title will be removed from the Container

Add tabs

To add a [Tabs][vizro.models.Tabs] model to your page, do the following:

Insert the [Tabs][vizro.models.Tabs] model into the components argument of the [Page][vizro.models.Page] model
Insert your [Container][vizro.models.Container] models into the tabs argument of the Tabs model
Add a title to the Container, which will be used as the label for the corresponding Tab.
(optional) Add a title to the Tabs model to display a heading above your Tabs.

Tabs

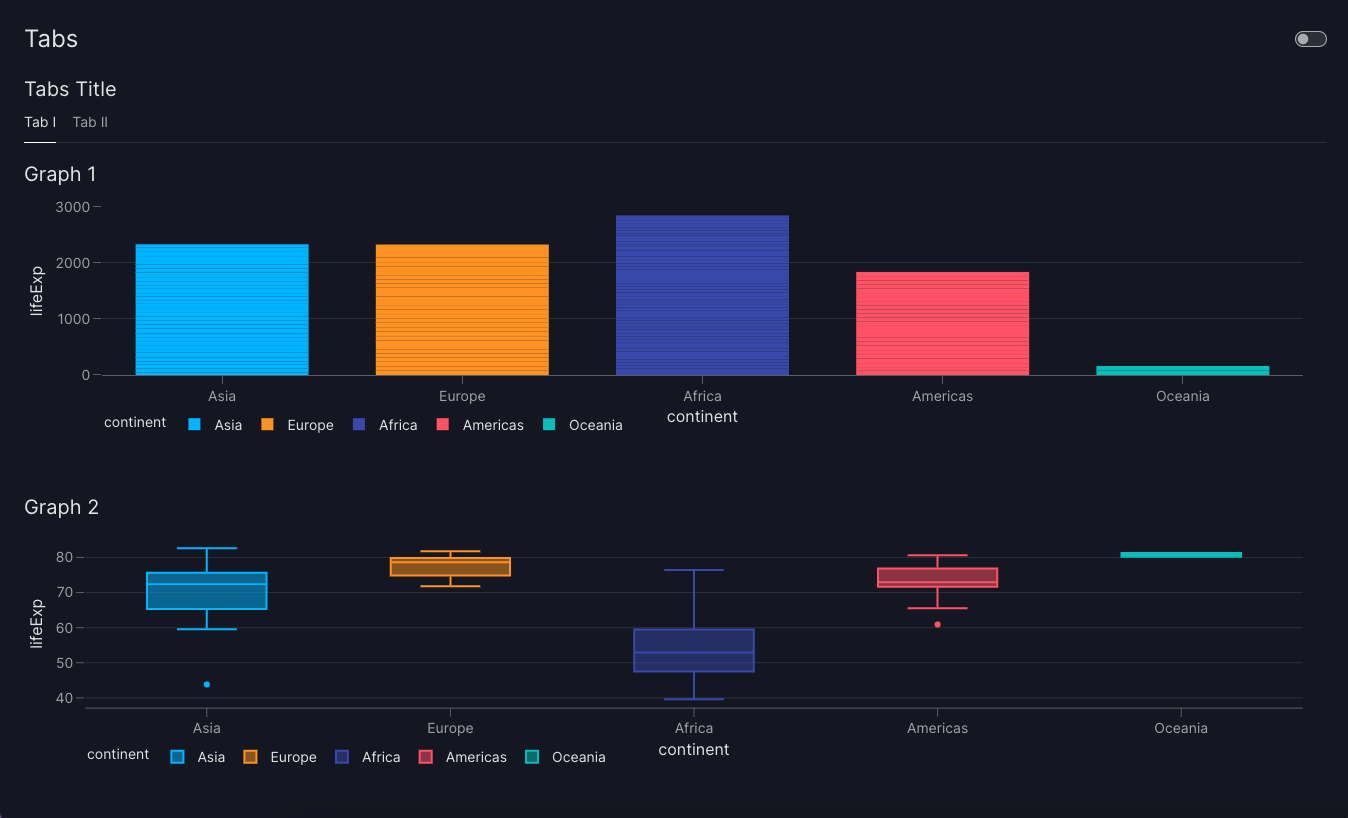

app.pyapp.yamlResult

import vizro.models as vm
import vizro.plotly.express as px
from vizro import Vizro

gapminder_2007 = px.data.gapminder().query("year == 2007")

page = vm.Page(
    title="Tabs",
    components=[
        vm.Tabs(
            title="Tabs Title",
            tabs=[
                vm.Container(
                    title="Tab I",
                    components=[
                        vm.Graph(
                            figure=px.bar(
                                gapminder_2007,
                                title="Graph 1",
                                x="continent",
                                y="lifeExp",
                                color="continent",
                            ),
                        ),
                        vm.Graph(
                            figure=px.box(
                                gapminder_2007,
                                title="Graph 2",
                                x="continent",
                                y="lifeExp",
                                color="continent",
                            ),
                        ),
                    ],
                ),
                vm.Container(
                    title="Tab II",
                    components=[
                        vm.Graph(
                            figure=px.scatter(
                                gapminder_2007,
                                title="Graph 3",
                                x="gdpPercap",
                                y="lifeExp",
                                size="pop",
                                color="continent",
                            ),
                        ),
                    ],
                ),
            ],
        ),
    ],
)

dashboard = vm.Dashboard(pages=[page])
Vizro().build(dashboard).run()

Run and edit this code in Py.Cafe

# Still requires a .py to add data to the data manager and parse YAML configuration
# See yaml_version example
pages:
  components:
    - type: tabs
      title: Tabs Title
      tabs:
        - title: Tab I
          type: container
          components:
            - type: graph
              figure:
                _target_: bar
                data_frame: gapminder_2007
                title: Graph 1
                x: continent
                y: lifeExp
                color: continent
            - type: graph
              figure:
                _target_: box
                data_frame: gapminder_2007
                title: Graph 2
                x: continent
                y: lifeExp
                color: continent
        - title: Tab II
          type: container
          components:
            - type: graph
              figure:
                _target_: scatter
                data_frame: gapminder_2007
                title: Graph 3
                x: gdpPercap
                y: lifeExp
                size: pop
                color: continent
  title: Tabs

The description argument enables you to add helpful context to your tabs by displaying an info icon next to its title. Hovering over the icon shows a tooltip with your chosen text.

You can provide Markdown text as a string to use the default info icon or a [Tooltip][vizro.models.Tooltip] model to use any icon from the Google Material Icons library.

Tabs with tooltip

app.pyapp.yamlResult

import vizro.models as vm
import vizro.plotly.express as px
from vizro import Vizro

gapminder_2007 = px.data.gapminder().query("year == 2007")

page = vm.Page(
    title="Tabs",
    components=[
        vm.Tabs(
            title="Tabs Title",
            description="""
                The Iris dataset includes measurements of 150 iris flowers across three types: Setosa, Versicolor, and Virginica.

                While all samples are labeled by type, they can appear similar when looking at just some features—making it a useful dataset for exploring patterns and challenges in classification.
            """,
            tabs=[
                vm.Container(
                    title="Tab I",
                    components=[
                        vm.Graph(
                            figure=px.bar(
                                gapminder_2007,
                                title="Graph 1",
                                x="continent",
                                y="lifeExp",
                                color="continent",
                            ),
                        ),
                        vm.Graph(
                            figure=px.box(
                                gapminder_2007,
                                title="Graph 2",
                                x="continent",
                                y="lifeExp",
                                color="continent",
                            ),
                        ),
                    ],
                ),
                vm.Container(
                    title="Tab II",
                    components=[
                        vm.Graph(
                            figure=px.scatter(
                                gapminder_2007,
                                title="Graph 3",
                                x="gdpPercap",
                                y="lifeExp",
                                size="pop",
                                color="continent",
                            ),
                        ),
                    ],
                ),
            ],
        ),
    ],
)

dashboard = vm.Dashboard(pages=[page])
Vizro().build(dashboard).run()

Run and edit this code in Py.Cafe

# Still requires a .py to add data to the data manager and parse YAML configuration
# See yaml_version example
pages:
  components:
    - type: tabs
      title: Tabs Title
      description: |
            The Iris dataset includes measurements of 150 iris flowers across three types: Setosa, Versicolor, and Virginica.

            While all samples are labeled by type, they can appear similar when looking at just some features—making it a useful dataset for exploring patterns and challenges in classification.
      tabs:
        - title: Tab I
          type: container
          components:
            - type: graph
              figure:
                _target_: bar
                data_frame: gapminder_2007
                title: Graph 1
                x: continent
                y: lifeExp
                color: continent
            - type: graph
              figure:
                _target_: box
                data_frame: gapminder_2007
                title: Graph 2
                x: continent
                y: lifeExp
                color: continent
        - title: Tab II
          type: container
          components:
            - type: graph
              figure:
                _target_: scatter
                data_frame: gapminder_2007
                title: Graph 3
                x: gdpPercap
                y: lifeExp
                size: pop
                color: continent
  title: Tabs
