First dashboard tutorial

Before creating your first Vizro dashboard with Vizro-MCP, you need to configure your MCP host. Follow our instructions to set up Claude Desktop, which is what this tutorial assumes.

(Alternatively, you can set up Cursor, or set up VS Code, or use our basic setup configuration for your preferred LLM).

When Claude Desktop is set up to use Vizro-MCP, you should see the vizro-mcp menu in the settings/context menu:

Claude Desktop MCP Server Icon

Create a dashboard with a prompt template

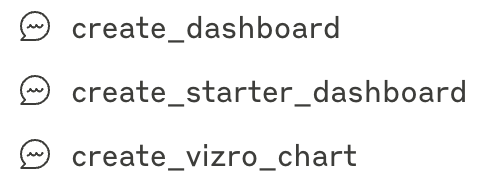

Click on the plus icon below the chat, and choose Add from vizro-mcp.

Claude Desktop MCP Server Icon

Choose the template create_starter_dashboard and submit the prompt.

The template prompt creates a simple dashboard with one page, one chart, and one filter.

Create a dashboard with a typed prompt

Prompt templates are only available in Claude Desktop, so if you are using another MCP host, or prefer to type your own prompt, this text is the equivalent of the template:

Dashboard creation prompt

Create a Vizro dashboard to analyze the iris dataset.
Make a scatter plot of sepal dimensions and a species filter.
Use the dark theme.

Dashboard output

Given the create_starter_dashboard.txt template, or prompt above, Vizro-MCP plans the dashboard, accesses the public Iris dataset, and creates the configuration automatically. It generates code similar to the following, and opens a link to display the dashboard in PyCafe.

If you want to see the dashboard for the code below, click on ☕️ Run and edit this code in Py.Cafe.

First dashboard

############ Imports ##############
import vizro.plotly.express as px
import vizro.models as vm
from vizro import Vizro
import pandas as pd
from vizro.managers import data_manager


####### Data Manager Settings #####
data_manager["iris_data"] = pd.read_csv(
    "https://raw.githubusercontent.com/plotly/datasets/master/iris-id.csv"
)

########### Model code ############
model = vm.Dashboard(
    pages=[
        vm.Page(
            components=[
                vm.Graph(
                    id="scatter_plot",
                    type="graph",
                    figure=px.scatter(
                        data_frame="iris_data",
                        x="sepal_length",
                        y="sepal_width",
                        color="species",
                        hover_data=["petal_length", "petal_width"],
                    ),
                    title="Sepal Dimensions by Species",
                )
            ],
            title="Iris Data Analysis",
            controls=[
                vm.Filter(
                    id="species_filter",
                    type="filter",
                    column="species",
                    targets=["scatter_plot"],
                    selector=vm.Dropdown(type="dropdown", multi=True),
                )
            ],
        )
    ],
    theme="vizro_dark",
    title="Iris Dashboard",
)

Vizro().build(model).run()

Run and edit this code in Py.Cafe
